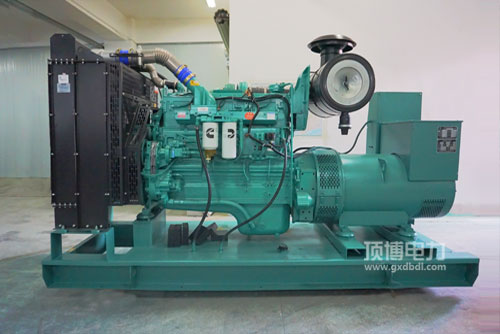

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电机组用启思想然油成本性好: 较为先进的然油把控电机把握软件，别具一格 的STC、ESTC 等级划分把控电机把握软件，特殊化设计构思的气缸最上层丙烷焚烧仓，直流高压输送然油，多方面吸雾，丙烷焚烧多方面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用打火机瞬态机械性能非常好: 精致的打火机整体风格开发，紧密配合康明斯显著的EFC体统，操作精密度大，卡死时段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用打着机升工作效率高: 局部的设计紧促.自己的外观布置设计合理有效，使用平静。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50足够全球非路线3、时期及亚洲Tier2. Tier 3减排相关法律法规必须。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件必须得要性好， 打着机正常运作及运维清洁体验，直接费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作功率范畴 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净性能 Dry Weight   940kg

224-310KW康明斯风能发电用打着机的优点和缺点：密度小， 挤压变高， 防雨百叶氧气采暖器，也容易启动的，移動车截电原的省心。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机机型	适用公率(kW)Prime Power	应急耗油率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
